Linear Shaft

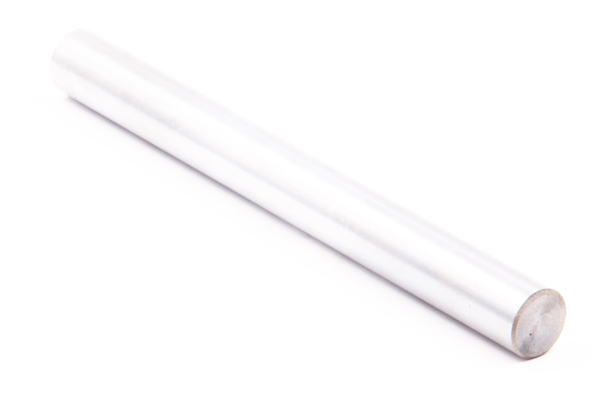

Linear slide shaft linear guide rail linear solid shaft linear hollow shaft High precision hardened linear shaft with diameter 6mm to 80mm
Linear shaft is widely used in Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments.
1. Neutral packing (neutral plastic bag+ neutral paper box + carton+ wod pallets)
2. Custom packing (with logo according to clients' requirement)
| 直径 mm | 型号SF(C) | 公差um g6 | 有效深度 mm | 重量Kgf/m | 外径 mm | 最大长度mm |
|---|---|---|---|---|---|---|
| 3 | SF(C)3 | -2～-8 | OVER1.0 | 0.06 | 3 | —– |
| 4 | SF(C)4 | -4～-12 | 0.10 | 4 | —– | |
| 5 | SF(C)5 | 0.16 | 5 | —- | ||
| 6 | SF(C)6 | 0.23 | 6 | 2000 | ||
| 8 | SF(C)8 | -5～-14 | 0.40 | 8 | 2000 | |
| 10 | SF(C)10 | 0.62 | 10 | 2000 | ||
| 12 | SF(C)12 | -6～-17 | 0.89 | 12 | 2000 | |
| 13 | SF(C)13 | 1.04 | 13 | 2000 | ||
| 16 | SF(C)16 | 1.58 | 16 | 6000 | ||
| 20 | SF(C)20 | -7～-20 | OVER1.5 | 2.47 | 20 | 6000 |
| 25 | SF(C)25 | 3.85 | 25 | 6000 | ||
| 30 | SF(C)30 | OVER2.0 | 5.55 | 30 | 6000 | |
| 35 | SF(C)35 | -9～-25 | 7.55 | 35 | 6000 | |
| 40 | SF(C)40 | OVER2.5 | 9.87 | 40 | 6000 | |
| 50 | SF(C)50 | 15.4 | 50 | 6000 | ||
| 60 | SF(C)60 | -10～-29 | OVER3.0 | 22.2 | 60 | 6000 |
| 80 | SF(C)80 | 39.5 | 80 | 6000 | ||
| 100 | SF(C)100 | -12～-34 | 61.7 | 100 | 6000 | |
| 120 | SF(C)120 | 88.8 | 120 | 6000 | ||
| 150 | SF(C)150 | -14～-39 | 139 | 150 | 6000 |
