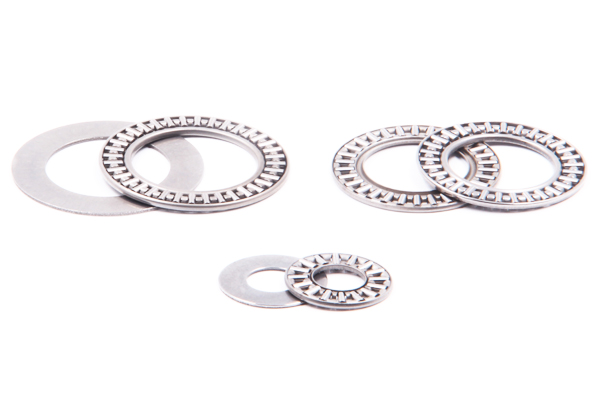

Thrust Needle Roller Bearing (AXK, AS Series)
Thrust Needle Roller Bearing (AXK, AS Series)
1. carry one way axial load
2. low height of axial cross section, save space in assemble
3. high precision in axial
1. High quality low carbon steel pipe.
2. General type car made after punching.
3. Heat treatment, carburizing, nigrities.
1. GCr15 bearing steel.
2. Through grinding machine grinding.
3. HRC60-64.
| 轴径
Shaft |
推力滚针和保持架组件
Axial Needle Roller and Cage Assemblies |
推力轴承垫圈
Thrust bearing washer |
尺寸
Dimension(mm) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter
(mm) |
型号
Code |
轴承垫圈代号
Bearing washer |
轴圈代号Shaft
Ring |
座圈代号Seat
Ring |
推力轴承垫圈代号
Axial Bearing Washer |

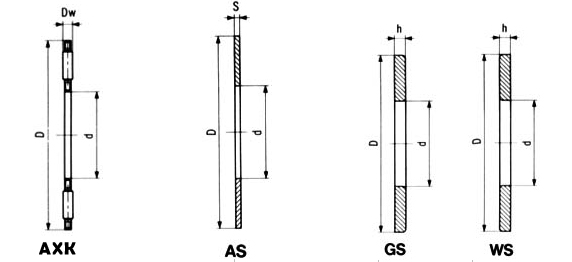

Dcl | D1 | Dc | d1 | Dw | B1 | B | a |
| d | D | r min | |||||||||||
| 4 | AXK0414TN | AS0414 | — | — | — | 4 | — | 14 | — | 2 | 1 | — | — |
| 5 | AXK0515TN | AS0515 | — | — | — | 5 | — | 15 | — | 2 | 1 | — | — |
| 6 | AXK0619TN | AS0619 | LS0619 | — | — | 6 | — | 19 | — | 2 | 1 | 2.75 | 0.3 |
| 8 | AXK0821TN | AS0821 | LS0821 | — | — | 8 | — | 21 | — | 2 | 1 | 2.75 | 0.3 |
| 10 | AXK1024 | AS1024 | LS1024 | — | — | 10 | — | 24 | — | 2 | 1 | 2.75 | 0.3 |
| 12 | AXK1226 | AS1226 | LS1226 | — | — | 12 | — | 26 | — | 2 | 1 | 2.75 | 0.3 |
| 15 | AXK1528 | AS1528 | LS1528 | GS81102 | WS81102 | 15 | 16 | 28 | 28 | 2 | 1 | 2.75 | 0.3 |
| 17 | AXK1730 | AS1730 | LS1730 | GS81103 | WS81103 | 17 | 18 | 30 | 30 | 2 | 1 | 2.75 | 0.3 |
| 20 | AXK2035 | AS2035 | LS2035 | GS81104 | WS81104 | 20 | 21 | 35 | 35 | 2 | 1 | 2.75 | 0.3 |
| 25 | AXK2542 | AS2542 | LS2542 | GS81105 | WS81105 | 25 | 26 | 42 | 42 | 2 | 1 | 3 | 0.6 |
| 30 | AXK3047 | AS3047 | LS3047 | GS81106 | WS81106 | 30 | 32 | 47 | 47 | 2 | 1 | 3 | 0.6 |
| 35 | AXK3552 | AS3552 | LS3552 | GS81107 | WS81107 | 35 | 37 | 52 | 52 | 2 | 1 | 3.5 | 0.6 |
| 40 | AXK4060 | AS4060 | LS4060 | GS81108 | WS81108 | 40 | 42 | 60 | 60 | 3 | 1 | 3.5 | 0.6 |
| 45 | AXK4565 | AS4565 | LS4565 | GS81109 | WS81109 | 45 | 47 | 65 | 65 | 3 | 1 | 4 | 0.6 |
| 50 | AXK5070 | AS5070 | LS5070 | GS81110 | WS81110 | 50 | 52 | 70 | 70 | 3 | 1 | 4 | 0.6 |
| 55 | AXK5578 | AS5578 | LS5578 | GS81111 | WS81111 | 55 | 57 | 78 | 78 | 3 | 1 | 5 | 0.6 |
| 60 | AXK6085 | AS6085 | LS6085 | GS81112 | WS81112 | 60 | 62 | 85 | 85 | 3 | 1 | 4.75 | 1 |
| 65 | AXK6590 | AS6590 | LS6590 | GS81113 | WS81113 | 65 | 67 | 90 | 90 | 3 | 1 | 5.25 | 1 |
| 70 | AXK7095 | AS7095 | LS7095 | GS81114 | WS81114 | 70 | 72 | 95 | 95 | 4 | 1 | 5.25 | 1 |
| 75 | AXK75100 | AS75100 | LS75100 | GS81115 | WS81115 | 75 | 77 | 100 | 100 | 4 | 1 | 5.75 | 1 |
| 80 | AXK80105 | AS80105 | LS80105 | GS81116 | WS81116 | 80 | 82 | 105 | 105 | 4 | 1 | 5.75 | 1 |
| 85 | AXK85110 | AS85100 | LS85110 | GS81117 | WS81117 | 85 | 87 | 110 | 110 | 4 | 1 | 5.75 | 1 |
| 90 | AXK90120 | AS90120 | LS90120 | GS81118 | WS81118 | 90 | 92 | 120 | 120 | 4 | 1 | 6.5 | 1 |
| 100 | AXK100135 | AS100135 | LS100135 | GS81120 | WS81120 | 100 | 102 | 135 | 135 | 4 | 1 | 7 | 1 |
| 110 | AXK110145 | AS110145 | LS110145 | GS81122 | WS81122 | 110 | 112 | 145 | 145 | 4 | 1 | 7 | 1 |
| 120 | AXK120155 | AS120155 | LS120155 | GS81124 | WS81124 | 120 | 122 | 155 | 155 | 4 | 1 | 7 | 1 |
| 130 | AXK130170 | AS130170 | LS130170 | GS81126 | WS81126 | 130 | 132 | 170 | 170 | 5 | 1 | 9 | 1 |
| 140 | AXK140180 | AS140180 | LS140180 | GS81128 | WS81128 | 140 | 142 | 180 | 178 | 5 | 1 | 9.5 | 1 |
| 150 | AXK150190 | AS150190 | LS150190 | GS81130 | WS81130 | 150 | 152 | 190 | 188 | 5 | 1 | 9.5 | 1 |
| 160 | AXK160200 | AS160200 | LS160200 | GS81132 | WS81132 | 160 | 162 | 200 | 198 | 5 | 1 | 9.5 | 1 |
