Products

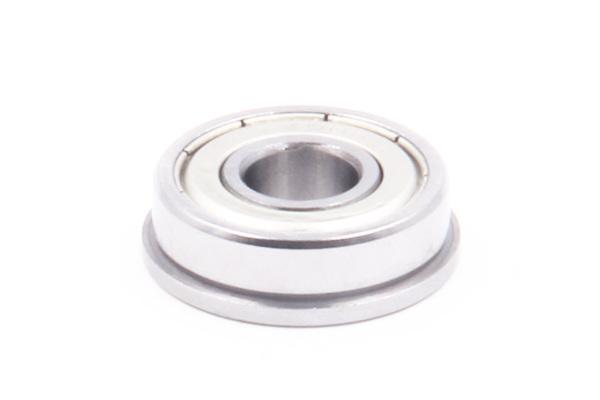

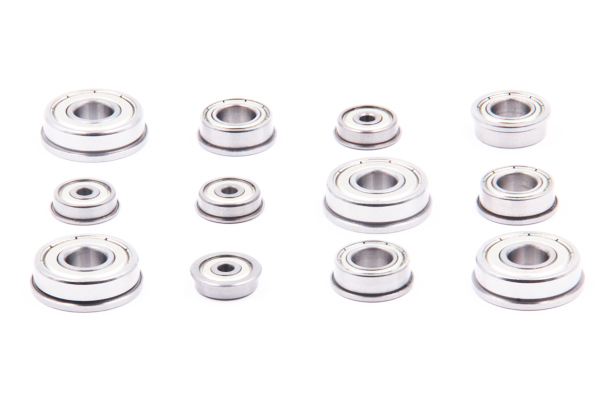

Flange Ball Bearing
Miniature ball bearings with flanged outer rings.


Features

Seal type

Open (without cover), metal shields (ZZ), rubber seals (2RS).


Precision grade

ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.


Cage

Cage is an important parts. Usually steel cage will be used in deep groove ball bearings, but there are customers who prefer nylon cage and bronze cage.


Application

all types of industrial equipment , small rotary motors, office equipment, micro-motor soft drive , pressure rotor , dental dental drill , a hard disk motors, stepper motors , VCR drum , toys, models, fan , pulleys , rollers, transmission equipment, entertainment equipment, robotics , medical equipment, office equipment , testing equipment , gear , transmission , motor optics , imaging devices , card readers , electrical, precision machinery, electric tools and toys.


Tech Specs

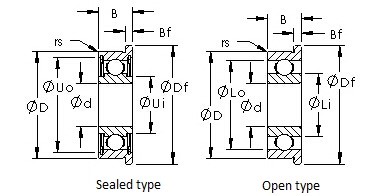

Boundary dimensions (mm) Bearing No. Load rating（N） Limiting speeds (rpm)
d D B B1 D1 D2 C1 C2 rsmix Open Shielded Sealed Cr Cor Grease Oil
3 8 3 4 9.5 9.5 0.7 0.9 0.1 F693 F693ZZ － 560 179 60000 67000
9 2.5 4 10.2 10.6 0.6 0.8 0.15 MF93 MF93ZZ － 570 187 56000 67000
9 3 5 10.5 10.5 0.7 1.0 0.15 F603 F603ZZ － 570 187 56000 67000
10 4 4 11.5 11.5 1.0 1.0 0.15 F623 F623ZZ F623-2RS 630 218 50000 60000
13 5 5 15 15 1.0 1.0 0.2 F633 F633ZZ F633-2RS 1300 485 40000 48000
4 7 2 2.5 8.2 8.2 0.6 0.6 0.1 MF74 MF74ZZ － 310 115 60000 67000
8 2 3 9.2 9.2 0.6 0.6 0.1 MF84 MF84ZZ － 395 139 56000 67000
9 2.5 4 10.3 10.3 0.6 1.0 0.1 F684 F684ZZ F684-2RS 640 225 53000 63000
10 3 4 11.2 11.6 0.6 0.8 0.15 MF104 MF104ZZ － 585 204 48000 56000
11 4 4 12.5 12.5 1.0 1.0 0.15 F694 F694ZZ F694-2RS 960 345 48000 56000
12 4 4 13.5 13.5 1.0 1.0 0.2 F604 F604ZZ F604-2RS 970 360 48000 56000
13 5 5 15 15 1.0 1.0 0.2 F624 F624ZZ F624-2RS 1300 485 40000 48000
16 5 5 18 18 1.0 1.0 0.3 F634 F634ZZ F634-2RS 1880 680 36000 43000
5 8 2 2.5 9.2 9.2 0.6 0.6 0.1 MF85 MF85ZZ － 310 120 53000 63000
9 2.5 3 10.2 10.2 0.6 0.6 0.15 MF95 MF95ZZ － 430 168 50000 60000
10 3 4 11.2 11.6 0.6 0.8 0.15 MF105 MF105ZZ － 430 168 50000 60000
11 3 5 12.5 12.5 0.8 1.0 0.15 F685 F685ZZ － 715 281 45000 53000
13 4 4 15 15 1.0 1.0 0.2 F695 F695ZZ F695-2RS 1080 430 43000 50000
14 5 5 16 16 1.0 1.0 0.2 F605 F605ZZ F605-2RS 1090 440 40000 50000
16 5 5 18 18 1.0 1.0 0.3 F625 F625ZZ F625-2RS 1880 680 36000 43000
19 6 6 22 22 1.5 1.5 0.3 F635 F635ZZ F635-2RS 2340 885 32000 40000
6 10 2.5 3 11.2 11.2 0.6 0.6 0.1 MF106 MF106ZZ － 495 218 45000 53000
12 3 4 11.2 11.6 0.6 0.8 0.15 MF126 MF126ZZ MF126-2RS 715 292 43000 50000
13 3.5 5 15 15 1.0 1.1 0.15 F686 F686ZZ F686-2RS 1080 440 40000 50000
15 5 5 17 17 1.2 1.2 0.2 F696 F696ZZ F696-2RS 1470 600 40000 45000
17 6 6 19 19 1.2 1.2 0.3 F606 F606ZZ F606-2RS 1970 735 38000 45000
19 6 6 22 22 1.5 1.5 0.3 F626 F626ZZ F626-2RS 2340 885 32000 40000
22 7 7 25 25 1.5 1.5 0.3 F636 F636ZZ F636-2RS 3300 1370 30000 36000
7 11 2.5 3 12.2 12.2 0.6 0.6 0.1 MF117 MF117ZZ － 455 201 43000 50000
13 3 4 14.2 14.6 0.6 0.8 0.15 MF137 MF137ZZ － 540 276 40000 48000
14 3.5 4 16 16 1.0 1.1 0.15 F687 F687ZZ F687-2RS 1170 510 40000 45000
17 5 5 19 19 1.2 1.2 0.3 F697 F697ZZ F697-2RS 1610 710 36000 43000
19 6 6 22 22 1.5 1.5 0.3 F607 F607ZZ F607-2RS 2340 885 36000 43000
22 7 7 25 25 1.5 1.5 0.3 F627 F627ZZ F627-2RS 3300 1370 30000 36000
26 9 9 29 29 2.0 2.0 0.3 F637 F637ZZ F637-2RS 4560 1980 28000 48000
8 12 2.5 3.5 13.2 13.6 0.6 0.8 0.1 MF128 MF128ZZ － 545 275 40000 45000
14 3.5 4 15.6 15.6 0.8 0.8 0.15 MF148 MF148ZZ MF148-2RS 820 385 38000 43000
16 4 5 18 18 1.0 1.1 0.2 F688 F688ZZ F688-2RS 1605 715 36000 43000
19 6 6 22 22 1.5 1.5 0.3 F698 F698ZZ F698-2RS 2240 910 36000 40000
22 7 7 25 25 1.5 1.5 0.3 F608 F608ZZ F608-2RS 3300 1370 30000 36000
24 8 8 26 26 2.0 2.0 0.3 F628 F628ZZ F628-2RS 3350 1430 28000 40000
28 9 9 30.25 30.25 2.25 2.25 0.3 F638 F638ZZ F638-2RS 4550 1970 28000 42000
9 17 4 5 19 19 1.0 1.1 0.2 F689 F689ZZ F689-2RS 1330 665 36000 40000
20 6 6 23 23 1.5 1.5 0.3 F699 F699ZZ F699-2RS 2850 1090 34000 38000
24 7 7 27 27 1.5 1.5 0.3 F609 F609ZZ F609-2RS 3350 1430 32000 34000
26 8 8 28 28 2.0 2.0 0.3 F629 F629ZZ F629-2RS 4550 1970 28000 30000
10 19 5 5 21 21 1.0 1.0 0.3 F6800 F6800ZZ F6800-2RS 1600 755 34000 40000
22 6 6 25 25 1.5 1.5 0.3 F6900 F6900ZZ F6900-2RS 2700 1270 32000 38000
26 8 8 28 28 2.0 2.0 0.3 F6000 F6000ZZ F6000-2RS 4550 1970 28000 30000
12 21 5 5 23 23 1.1 1.1 0.3 F6801 F6801ZZ F6801-2RS 1920 1040 32000 20000
24 6 6 26.5 26.5 1.5 1.5 0.3 F6901 F6901ZZ F6901-2RS 2890 1460 30000 20000
15 24 5 5 26 26 1.1 1.1 0.3 F6802 F6802ZZ F6802-2RS 2070 1260 28000 34000
28 7 7 30.5 30.5 1.5 1.5 0.3 F6902 F6902ZZ F6902-2RS 4350 2260 26000 30000
