Products

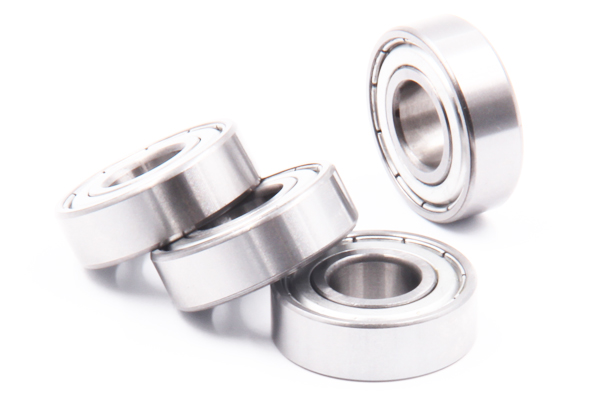

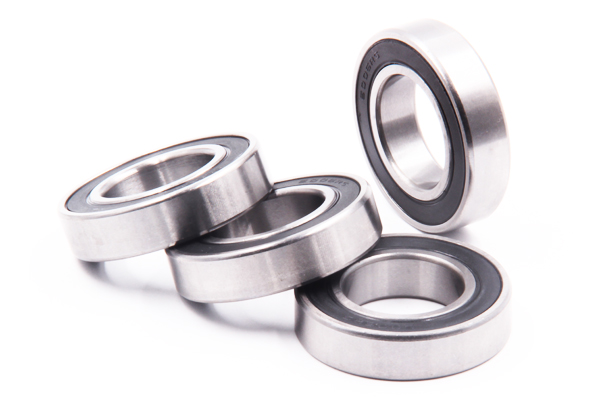

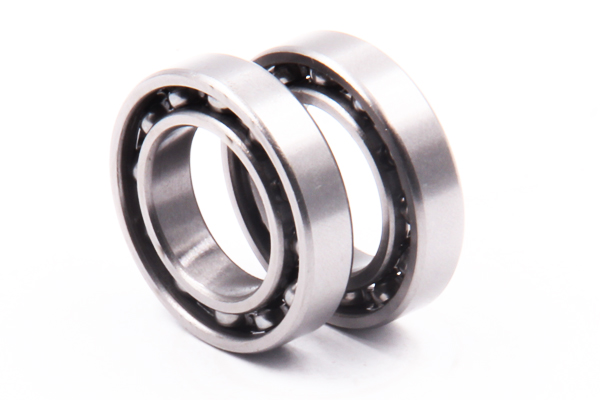

Deep Groove Ball Bearings (6000, 6200, 6300 Series)
One of the largest production output and most widely used bearings.


Features

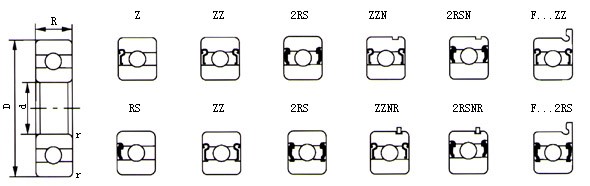

Seal type

Open (without cover), metal shields (ZZ), rubber seals (2RS).


Precision grade

ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.


Cage

Cage is an important parts. Usually steel cage will be used in deep groove ball bearings, but there are customers who prefer nylon cage and bronze cage.


Application

Motor, fitness equipment, telecommunication equipment, instrument and apparatus, computer, auto motor, precision instrument, machine equipment industries etc.


Tech Specs

Bearing

No.

 ID OD Width Loating （KN） balls Limiting speeds
d D B qty size Grease Oil
mm  inch mm  inch mm  inch Cr Cor mm rpm rpm
6000 10 0.3937 26 1.0236 8 0.315 4.55 1.95 7 4.763 29000 34000
6001 12 0.4724 28 1.1024 8 0.315 5.1 2.39 8 4.763 26000 30000
6002 15 0.5906 32 1.2598 9 0.3543 5.6 2.84 9 4.763 22000 26000
6003 17 0.6693 35 1.378 10 0.3937 6.8 3.35 10 4.763 20000 24000
6004 20 0.7874 42 1.6535 12 0.4724 9.4 5.05 9 6.35 18000 21000
6005 25 0.9843 47 1.8504 12 0.4724 10.1 5.85 10 6.35 15000 18000
6006 30 1.1811 55 2.1645 13 0.5118 13.2 8.3 11 7.144 13000 15000
6007 35 1.3779 62 2.4409 14 0.5512 16 10.3 11 7.938 12000 14000
6008 40 1.5748 68 2.6772 15 0.5906 16.8 11.5 12 7.938 10000 12000
6009 45 1.7716 75 2.9528 16 0.6299 21 15.1 12 8.731 9200 11000
6010 50 1.965 80 3.1496 16 0.6299 21.8 16.6 13 8.731 8400 9800
6011 55 2.1653 90 3.5433 18 0.7087 28.3 21.2 12 11 7700 9000
6012 60 2.362 95 3.74 18 0.7087 29.5 23.2 13 11 7000 8300
Bearing No. ID OD Width Loading （KN） balls Limiting speeds
d D B qty size Grease Oil
mm  inch mm  inch mm  inch Cr Cor mm rpm rpm
6200 10 0.3973 30 1.1811 9 0.3543 5.1 2.39 8 4.763 25000 30000
6201 12 0.4724 32 1.2598 10 0.3937 6.1 2.75 7 5.953 22000 26000
6202 15 0.5906 35 1.3779 11 0.4331 7.75 3.6 8 5.953 19000 23000
6203 17 0.6693 40 1.5748 12 0.4724 9.6 4.6 8 6.747 18000 21000
6204 20 0.7874 47 1.8504 14 0.5512 12.8 6.65 8 7.938 16000 18000
6205 25 0.9843 52 2.0472 15 0.5906 14 7.85 9 7.938 13000 15000
6206 30 1.1811 62 2.4409 16 0.6299 19.5 11.3 9 9.525 11000 13000
6207 35 1.3779 72 2.8346 17 0.6693 25.7 15.3 9 11.112 9800 11000
6208 40 1.5748 80 3.1496 18 0.7087 29.1 17.8 9 12 8700 10000
6209 45 1.7716 85 3.3465 19 0.748 32.5 20.4 10 12 7800 9200
6210 50 1.965 90 3.5433 20 0.7841 35 23.2 10 12.7 7100 8300
Bearing No. ID OD Width Loading （KN） balls Limiting speeds
d D B qty size Grease Oil
mm  inch mm  inch mm  inch Cr Cor mm rpm rpm
6300 10 0.3937 35 1.3779 11 0.4331 8.2 3.5 6 7.144 23000 27000
6301 12 0.4724 37 1.4567 12 0.4724 9.7 4.2 6 7.938 20000 24000
6302 15 0.5906 42 1.6535 13 0.5118 11.4 5.45 7 7.938 17000 21000
6303 17 0.6693 47 1.8504 14 0.5512 13.5 6.55 7 8.731 16000 19000
6304 20 0.7874 52 2.0472 15 0.5906 15.9 7.9 7 9.525 14000 17000
6305 25 0.9843 62 2.4409 17 0.6693 21.2 10.9 7 11.5 12000 14000
6306 30 1.1811 72 2.8346 19 0.748 26.7 15 8 12 10000 12000
6307 35 1.3779 80 3.1496 21 0.8268 33.5 19.1 8 13.494 8800 10000
6308 40 1.5748 90 3.5433 23 0.9055 40.5 24 8 15.081 7800 9200
6309 45 1.7716 100 3.937 25 0.9843 53 32 8 17.462 7000 8200
6310 50 1.965 110 4.3307 27 1.063 62 38.5 8 19.05 6400 7500
