Widen Deep Groove Ball Bearing (62300, 62200, 63000 Series)
widen deep groove ball bearing is with widen width or widen height size of deep groove ball bearing.

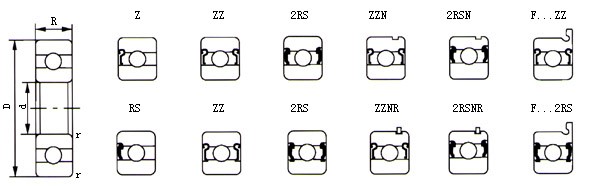

Open (without cover), metal shields (ZZ), rubber seals (2RS).
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
Cage is an important parts. Usually steel cage will be used in deep groove ball bearings, but there are customers who prefer nylon cage and bronze cage.
Motor, fitness equipment, telecommunication equipment, instrument and apparatus, computer, auto motor, precision instrument, machine equipment industries etc.
Boundary dimensions (mm) | Bearing No. | Load rating(N) | Limiting speeds(rpm) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
d | D | B | B1 | Rmix | open | Shielded | Sealed | Cr | Cor | Grease | Oil | |
10 | 30 | 14 | 14 | 0.3 | 62200 | 62200ZZ | 62200-2RS | 5100 | 2390 | 25000 | 30000 | |
30 | 14.3 | 14.3 | 0.3 | W6200 | W6200ZZ | W6200-2RS | 5100 | 2390 | ||||
35 | 17 | 17 | 0.6 | 62300 | 62300ZZ | 62300-2RS | 8200 | 3500 | 23000 | 27000 | ||
35 | 19 | 19 | 0.6 | W6300 | W6300ZZ | W6300-2RS | 7650 | 3480 | ||||
12 | 28 | 12 | 12 | 0.3 | 63001 | 63001ZZ | 630012RS | 5100 | 2390 | 26000 | 3000 | |
32 | 14 | 14 | 0.6 | 62201 | 62201ZZ | 62201-2RS | 6100 | 2750 | 22000 | 26000 | ||
32 | 15.9 | 15.9 | 0.6 | W6201 | W6201ZZ | W6201-2RS | 6820 | 3060 | ||||
37 | 17 | 17 | 1.0 | 62301 | 62301ZZ | 62301-2RS | 9700 | 4200 | 20000 | 24000 | ||
37 | 19 | 19 | 1 | W6301 | W6301ZZ | W6301-2RS | 9720 | 5080 | ||||
15 | 32 | 13 | 13 | 0.3 | 63002 | 63002ZZ | 63002-2RS | 5600 | 2840 | 22000 | 26000 | |
35 | 14 | 14 | 0.6 | 62202 | 62202ZZ | 62202-2RS | 7750 | 3600 | 19000 | 23000 | ||
35 | 15.9 | 15.9 | 0.6 | W6202 | W6202ZZ | W6202-2RS | 7640 | 3720 | ||||
42 | 17 | 17 | 1.0 | 62302 | 62302ZZ | 62302-2RS | 11400 | 5450 | 17000 | 21000 | ||
42 | 19 | 19 | 1 | W6302 | W6302ZZ | W6302-2RS | 11500 | 5420 | ||||
17 | 35 | 14 | 14 | 0.3 | 63003 | 63003ZZ | 63003-2RS | 6800 | 3350 | 20000 | 24000 | |
40 | 16 | 16 | 0.6 | 62203 | 62203ZZ | 62203-2RS | 9600 | 4600 | 18000 | 21000 | ||
40 | 17.5 | 17.5 | 0.6 | W6203 | W6203ZZ | W6203-2RS | 9570 | 4790 | ||||
47 | 19 | 19 | 1.0 | 62303 | 62303ZZ | 62303-2RS | 13500 | 6550 | 16000 | 19000 | ||
47 | 22.2 | 22.2 | 1 | W6303 | W6303ZZ | W6303-2RS | 1350 | 6580 | ||||
20 | 42 | 16 | 16 | 0.3 | 63004 | 63004ZZ | 63004-2RS | 9400 | 5050 | 18000 | 21000 | |
47 | 18 | 18 | 1.0 | 62204 | 62204ZZ | 62204-2RS | 12800 | 6650 | 16000 | 18000 | ||
47 | 20.6 | 20.6 | 1 | W6204 | W6204ZZ | W6204-2RS | 12840 | 6650 | ||||
52 | 21 | 21 | 1.1 | 62304 | 62304ZZ | 62304-2RS | 15900 | 7900 | 14000 | 17000 | ||
52 | 22.2 | 22.2 | 1.1 | W6304 | W6304ZZ | W6304-2RS | 15800 | 7880 | ||||
25 | 47 | 16 | 16 | 0.6 | 63005 | 63005ZZ | 63005-2RS | 10100 | 5580 | 15000 | 18000 | |
52 | 18 | 18 | 1.0 | 62205 | 62205ZZ | 62205-2RS | 14000 | 7850 | 13000 | 15000 | ||
52 | 20.6 | 20.6 | 1 | W6205 | W6205ZZ | W6205-2RS | 14020 | 7880 | ||||
62 | 24 | 24 | 1.1 | 62305 | 62305ZZ | 62305-2RS | 21200 | 10900 | 12000 | 14000 | ||
62 | 25.4 | 25.4 | 1.1 | W6305 | W6305ZZ | W63052RS | 22200 | 11500 | ||||
30 | 55 | 19 | 19 | 1.0 | 63006 | 63006ZZ | 63006-2RS | 13200 | 8300 | 13000 | 15000 | |
62 | 20 | 20 | 1.0 | 62206 | 62206ZZ | 62206-2RS | 19500 | 11300 | 11000 | 13000 | ||
62 | 23.8 | 23.8 | 1 | W6206 | W6206ZZ | W6206-2RS | 19460 | 11460 | ||||
72 | 27 | 27 | 1.1 | 62306 | 62306ZZ | 62306-2RS | 26700 | 15000 | 10000 | 12000 | ||
72 | 30.2 | 30.2 | 1.1 | W6306 | W6306ZZ | W6306-2RS | 27000 | 15200 | ||||
35 | 62 | 14 | 20 | 1.0 | 63007 | 63007ZZ | 63007-2RS | 16000 | 10300 | 12000 | 14000 | |
72 | 23 | 23 | 1.1 | 62207 | 62207ZZ | 62207-2RS | 25700 | 15300 | 9800 | 11000 | ||
72 | 27 | 27 | 1.1 | W6207 | W6207ZZ | W6207-2RS | 25670 | 15370 | ||||
80 | 31 | 31 | 1.5 | 62307 | 62307ZZ | 62307-2RS | 33500 | 19100 | 8800 | 10000 | ||
80 | 34.9 | 34.9 | 1.5 | W6307 | W6302ZZ | W6307-2RS | 33200 | 19200 | ||||
40 | 68 | 21 | 21 | 0.3 | 63008 | 63008ZZ | 63008-2RS | 16800 | 11500 | 10000 | 12000 | |
80 | 23 | 23 | 1.1 | 62208 | 62208ZZ | 62208-2RS | 29100 | 17800 | 8700 | 10000 | ||
80 | 30.2 | 30.2 | 1.1 | W6208 | W6208ZZ | W6208-2RS | 29520 | 18140 | ||||
90 | 33 | 33 | 1.5 | 62308 | 62308ZZ | 62308-2RS | 40500 | 24000 | 7800 | 9200 | ||
90 | 36.5 | 36.5 | 1.5 | W6309 | W6309ZZ | W6309-2RS | 40570 | 24010 | ||||
45 | 75 | 23 | 23 | 1.0 | 63009 | 63009ZZ | 63009-2RS | 20800 | 14600 | 5600 | 6600 | |
85 | 23 | 23 | 1.1 | 62209 | 62209ZZ | 62209-2RS | 32500 | 20400 | 7800 | 9200 | ||
85 | 30.2 | 30.2 | 1.1 | W6209 | W6209ZZ | W6209-2RS | 31670 | 20680 | ||||
100 | 36 | 36 | 1.5 | 62309 | 62309ZZ | 62309-2RS | 53000 | 32000 | 7000 | 8200 | ||
100 | 39.7 | 39.7 | 1.5 | W6309 | W6309ZZ | W6309-2RS | 52860 | 31830 | ||||
50 | 80 | 23 | 23 | 1.0 | 63010 | 63010ZZ | 63010-2RS | 21600 | 16000 | 5000 | 6000 | |
90 | 23 | 23 | 1.1 | 62210 | 62210ZZ | 6210-2RS | 35000 | 23200 | 7100 | 8300 | ||
90 | 30.2 | 30.2 | 1.1 | W6210 | W6210ZZ | W6210-2RS | 35070 | 23180 | ||||
110 | 40 | 40 | 2.0 | 62310 | 62310ZZ | 62310-2RS | 62000 | 38500 | 6400 | 7500 | ||
110 | 44.4 | 44.4 | 2 | W6310 | W6310ZZ | W6310-2RS | 61860 | 37940 |
