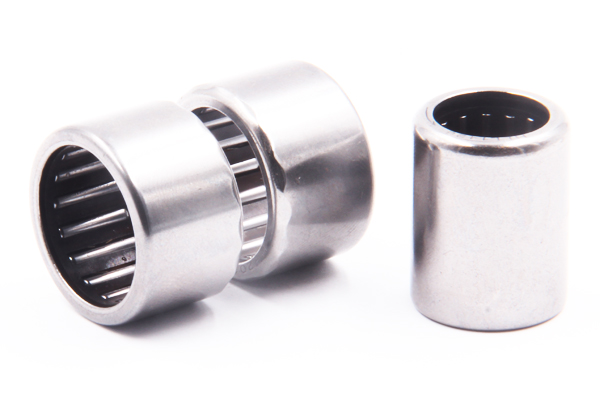

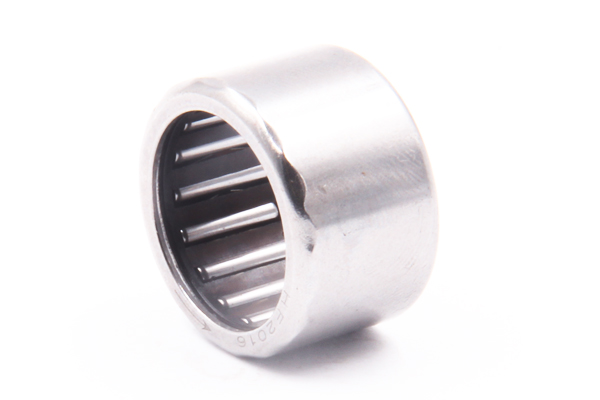

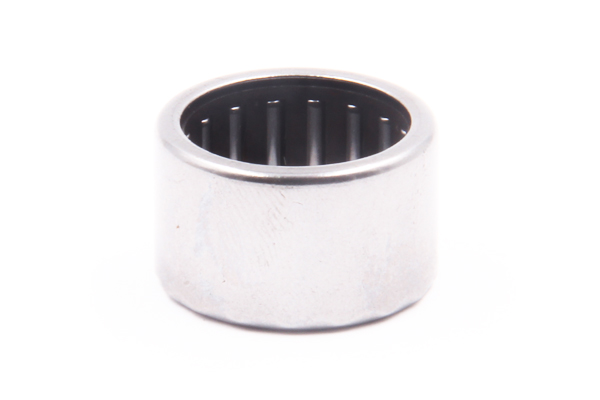

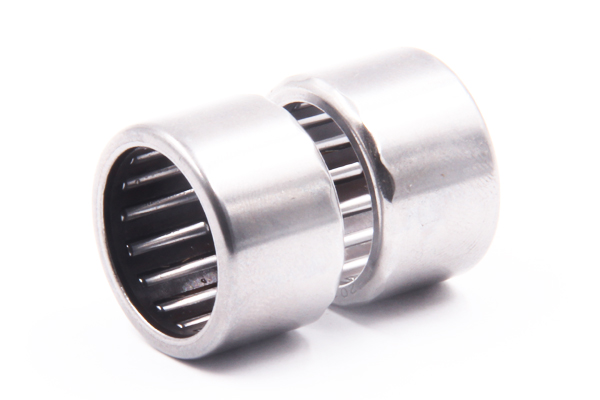

One Way Needle Roller Bearing (HF, HFL Series)
One Way Needle Roller Bearing (HF, HFL Series)
1. one-way rotate, locking at opposite
2. high transform frequency and conversion accuracy
1. High quality low carbon steel pipe.
2. General type car made after punching.
3. Heat treatment, carburizing, nigrities.
1. GCr15 bearing steel.
2. Through grinding machine grinding.
3. HRC60-64.

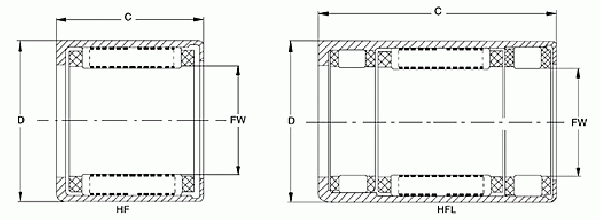

轴径 | 轴承型号 | 参考 | 外形尺寸 | 额定负荷 | 极限转速 | 传递扭矩 | ||||
---|---|---|---|---|---|---|---|---|---|---|
Shaft | Bearing Designation | 重量 | BoundaryDimensions | BasicLoadRating | Limiting Speed | Transmission torque | ||||
Diameter | Weight | Fw | D | C | 动 | 静 | 脂润滑 | 油润滑 | N.m | |
Dynamic | Static | Grease | Oil | |||||||
mm | g | mm | N | rpm | ||||||
4 | HF0406 | 1 | 4 | 8 | 6 | 34000 | 14000 | 0.34 | ||
6 | HF0612 | 3 | 6 | 10 | 12 | 23000 | 13000 | 1.76 | ||
8 | HF0812 | 3.5 | 8 | 12 | 12 | 17000 | 12000 | 3.15 | ||
10 | HFl012 | 4 | 10 | 14 | 12 | 14000 | 11000 | 5.3 | ||
12 | HFl216 | 11.6 | 12 | 18 | 16 | 11000 | 8000 | 12.2 | ||
14 | HFl416 | 13 | 14 | 20 | 16 | 9500 | 8000 | 17.3 | ||
16 | HFl616 | 14 | 16 | 22 | 16 | 8500 | 7500 | 20.5 | ||
18 | HFl816 | 15.5 | 18 | 24 | 16 | 7500 | 7500 | 24.1 | ||
20 | HF2016 | 17 | 20 | 26 | 16 | 7000 | 6500 | 28.1 | ||
25 | HF2520 | 30.9 | 25 | 32 | 20 | 5500 | 5500 | 66 | ||
30 | HF3020 | 36 | 30 | 37 | 20 | 4500 | 4500 | 90 | ||
35 | HF3520 | 40 | 35 | 42 | 20 | 3900 | 3900 | 121 | ||
4 | HFL0408 | 1.6 | 4 | 8 | 8 | 34000 | 14000 | 0.34 | ||
6 | HFL0615 | 4 | 6 | 10 | 15 | 4050 | 4650 | 23000 | 13000 | 1.76 |
8 | HFL0822 | 6.3 | 8 | 12 | 22 | 4300 | 4650 | 17000 | 12000 | 3.15 |
10 | HFLl022 | 7.4 | 10 | 14 | 22 | 6300 | 6500 | 14000 | 11000 | 5.3 |
12 | HFLl226 | 18 | 12 | 18 | 26 | 7100 | 7700 | 11000 | 8000 | 12.2 |
14 | HFLl426 | 20.3 | 14 | 20 | 26 | 7300 | 8400 | 9500 | 8000 | 17.3 |
16 | HFLl626 | 22 | 16 | 22 | 26 | 8300 | 10300 | 8500 | 7500 | 17.3 |
18 | HFLl826 | 24.4 | 18 | 24 | 26 | 8200 | 10400 | 7500 | 7500 | 20.5 |
20 | HFL2026 | 27 | 20 | 26 | 26 | 10900 | 14100 | 7000 | 6500 | 28.5 |
25 | HFL2530 | 44 | 25 | 32 | 30 | 12600 | 17600 | 5500 | 5500 | 66 |
30 | HFL3030 | 51 | 30 | 37 | 30 | 13000 | 19300 | 4500 | 4500 | 90 |
35 | HFL3530 | 58 | 35 | 42 | 30 | 3900 | 3900 | 121 |
