LFR Track Roller Bearing

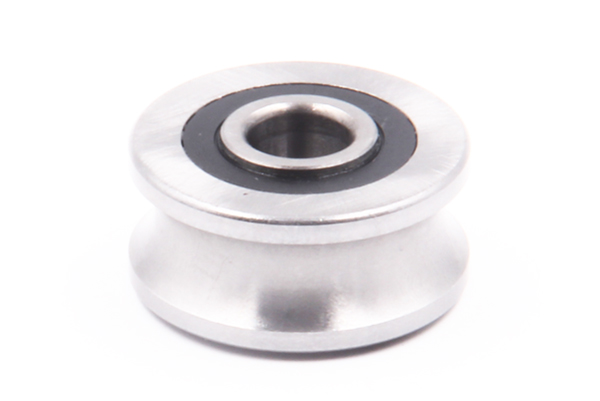

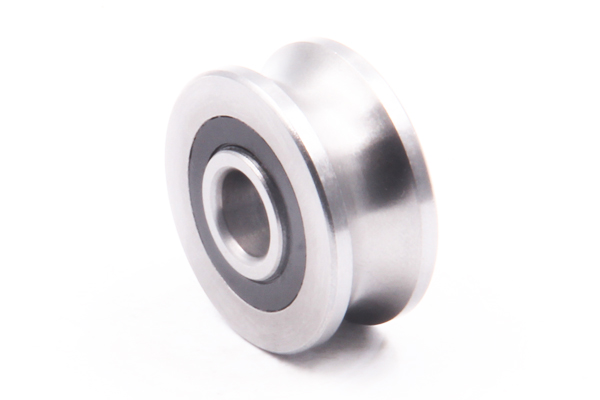

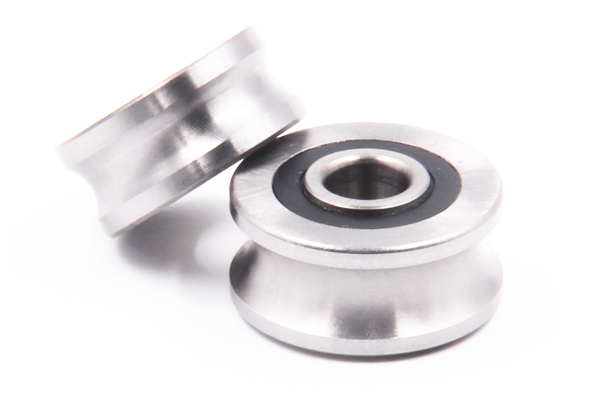

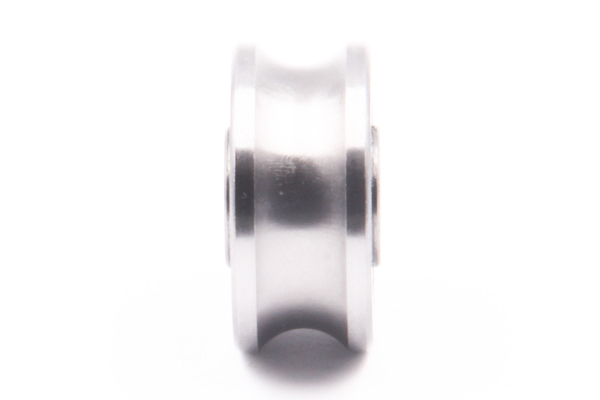

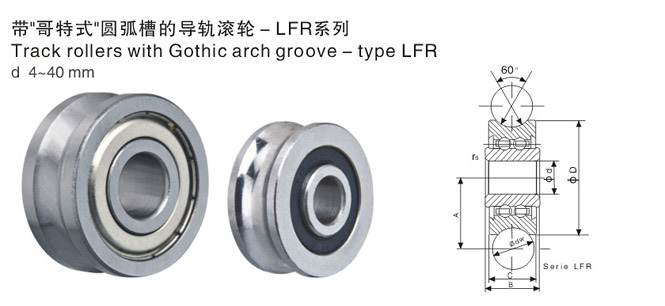

Track rollers with Gothic arch groove-type LFR
1. Series LFR track rollers are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track. The material is chrome steel or stainless steel.
2. There are two contact points between the roller and track, so the contact function is favorable.
3. Rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.
4. Rollers are made of high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Rollers mount the metal shield (KDD) or rubble seal (NPP) to prevent the dust. F&Y also can provide the rollers with concentric or eccentric pivot. Some types of the rollers can be made from the corrosion resistance stainless steel.
compared with the single bearing double row angular contact ball bearing has better rigidity, can withstand the overturning moment. Bearing as a separate. Especially suitable for a high rigid requirements. Widely used in the car of the front wheel hub (some models also use the same size of the double row circular cone roller bearings).
导轨滚轮型号 | 重量 | 尺寸(mm) | 载荷 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
FYOSY | dw | d | D | C | B | A | rs | Cw(KN) | Cow(KN) | Frperm(KN) | |
LFR50/4NPP | 3.5 | 5 | 4 | 13 | 6 | 7 | 8.04 | 0.2 | 1.05 | 0.85 | 1.15 |
LFR50/5-4KDD | 7.5 | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 | 1.2 | 0.86 | 1.3 |
LFR50/5-4NPP | 7.5 | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 | 1.2 | 0.86 | 1.3 |
LFR50/5KDD | 8 | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 | 1.27 | 0.82 | 1.3 |
LFR50/5NPP | 8 | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 | 1.27 | 0.82 | 1.3 |
LFR50/8KDD | 24 | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 | 3.67 | 2.28 | 1.3 |
LFR50/8NPP | 24 | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 | 3.67 | 2.28 | 1.3 |
LFR50/8-8KDD | 24 | 8 | 8 | 24 | 11 | 11 | 14.75 | 0.3 | 3.67 | 2.28 | 1.3 |
LFR50/8-8NPP | 24 | 8 | 8 | 24 | 11 | 11 | 14.75 | 0.3 | 3.67 | 2.28 | 1.3 |
LFR30/8KDD | 31 | 10 | 8 | 26.8 | 11 | 13 | 16.7 | 0.3 | 3.67 | 2.28 | 1.3 |
LFR30/8NPP | 31 | 10 | 8 | 26.8 | 11 | 13 | 16.7 | 0.3 | 3.67 | 2.28 | 1.3 |
LFR5201KDD | 68 | 10 | 12 | 35 | 15.9 | 15.9 | 20.65 | 0.3 | 8.5 | 5.1 | 5.1 |
LFR5201NPP | 68 | 10 | 12 | 35 | 15.9 | 15.9 | 20.65 | 0.3 | 8.5 | 5.1 | 5.1 |
LFR5301KDD | 130 | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13 | 7.7 | 7.5 |
LFR5301NPP | 130 | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13 | 7.7 | 7.5 |
LFR5301-20KDD | 125 | 20 | 12 | 42 | 19 | 19 | 28 | 0.6 | 13 | 7.7 | 7.5 |
LFR5301-20NPP | 125 | 20 | 12 | 42 | 19 | 19 | 28 | 0.6 | 13 | 7.7 | 7.5 |
LFR5302KDD | 163 | 10 | 15 | 47 | 19 | 19 | 26.65 | 1 | 16.2 | 9.2 | 6.2 |
LFR5302NPP | 163 | 10 | 15 | 47 | 19 | 19 | 26.65 | 1 | 16.2 | 9.2 | 6.2 |
LFR5201-12KDD | 68 | 12 | 12 | 35 | 15.9 | 15.9 | 21.75 | 0.3 | 8.4 | 5 | 5.1 |
LFR5201-12NPP | 68 | 12 | 12 | 35 | 15.9 | 15.9 | 21.75 | 0.3 | 8.4 | 5 | 5.1 |
LFR5201-14KDD | 107 | 14 | 12 | 39.9 | 18 | 20 | 24 | 0.3 | 8.9 | 5 | 6.7 |
LFR5201-14NPP | 107 | 14 | 12 | 39.9 | 18 | 20 | 24 | 0.3 | 8.9 | 5 | 6.7 |
LFR5201-10.4KDD | 115 | 10 | 12 | 39.9 | 18 | 20 | 22 | 0.3 | 8.9 | 5 | 6.7 |
LFR5201-10.4NPP | 115 | 10 | 12 | 39.9 | 18 | 20 | 22 | 0.3 | 8.9 | 5 | 6.7 |
LFR5204-16KDD | 195 | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 0.6 | 16.8 | 9.5 | 12.1 |
LFR5204-16NPP | 195 | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 0.6 | 16.8 | 9.5 | 12.1 |
LFR5206-20KDD | 435 | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 0.6 | 29.5 | 16.6 | 20.7 |
LFR5206-20NPP | 435 | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 0.6 | 29.5 | 16.6 | 20.7 |
LFR5206-25KDD | 425 | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 0.6 | 29.5 | 16.4 | 23.1 |
LFR5206-25NPP | 425 | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 0.6 | 29.5 | 16.4 | 23.1 |
LFR5207-30KDD | 660 | 30 | 30 | 80 | 27 | 29 | 51 | 1 | 38 | 20.8 | 21.4 |
LFR5207-30NPP | 660 | 30 | 30 | 80 | 27 | 29 | 51 | 1 | 38 | 20.8 | 21.4 |
LFR5208-40KDD | 1360 | 40 | 40 | 98 | 36 | 38 | 62.5 | 1 | 54.8 | 29 | 55 |
LFR5208-41KDD | 1360 | 40 | 40 | 98 | 36 | 38 | 62.5 | 1 | 54.8 | 29 | 55 |
LFR5208-42KDD | 1400 | 50 | 50 | 110 | 44 | 46 | 72.5 | 1.1 | 53 | 39.5 | 69 |
LFR5208-43KDD | 1400 | 50 | 50 | 110 | 44 | 46 | 72.5 | 1.1 | 53 | 39.5 | 69 |
