LV(RV) Track Roller Bearing

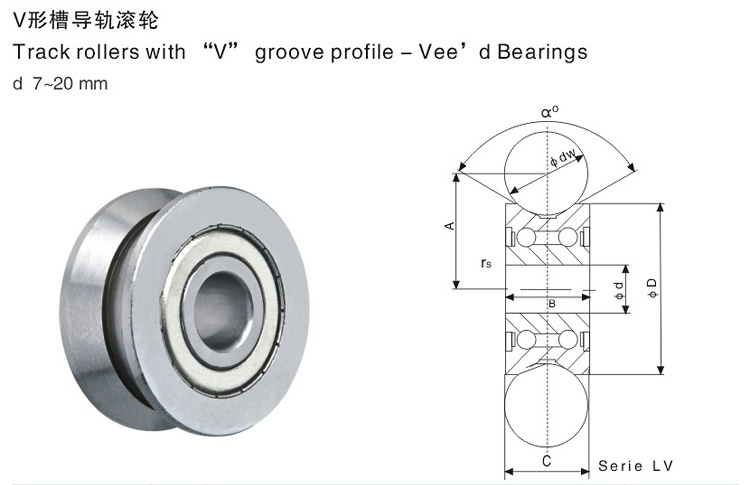

Track roller bearing with "V" groove profile – type LV(RV)
Series LV bearings can be widely used in the cylindrical track or " V " profile track with an angle of 120 degrees. Different from the series LFR bearings, series LV bearings are more adaptable to the different track sizes. Each type can be applied with a larger range of track diameters. They are widely used for the heavy-duty track, mobile equipment, wire straightening machine and so on.
• bearing double row angular contact ball bearing design and the internal structure of the thickening of the outer ring, so that a higher load bearing capacity.
• Bearing bearing steel with high-quality (AISI52100 or stainless steel AISI440C) the manufacture, by heat treatment, precision grinding together, and fill in the internal long-life high-quality multi-purpose grease. Shielded metal bearing dust. Shuang-Hua bearings can also be provided with concentric and eccentric axis of the bearing axis.
• bearing outer ring has a V-bottom groove back blade, such as the requirements do not permit the use of a knife groove back, the bearings can be ordered Shuanghua without bearing groove back knife can also be customized to other V-shaped angle of the bearings.
• Bearings are made of the high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Bearings take the metal shield to prevent the dust. F&Y also can provide the bearings with concentric or eccentric pivot.
